Locking Systems

Locking Systems

Prospec Removable Cylinder Coin Lock
  • Medium To High Level
  • Average Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Coins & Cards

Prospec Removable Cylinder Coin Lock

Prospec Removable Cylinder Coin Lock with coin refund, (also available with card system) removable nickel-plated brass cylinder, drilled security key, master series with 2,000 differs. Fixed to backplate with 4no anti tamper torx screws. Attached to the door and aluminium numberplate by 316 grade stainless steel through fixings.

Supplied with 1no user key per lock, 2no master keys and 2no cylinder removal key per installation. Cards can be supplied by Client or Prospec. Hole punch available to allow cards to be made on site.

Cards can be supplied by Client or Prospec. Hole punch available to allow cards to be made on site.


Prospec Removable Cylinder Single Coin Collect Lock
  • Medium To High Level
  • High Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Coins

Prospec Removable Cylinder Single Coin Collect Lock

Prospec Removable Cylinder Coin Collect Lock with coin retain function, coin box with separate master key, removable nickel plated brass cylinder, drilled security key, master series with 2,000 differs. COIN BOX fixed to backplate with 4no anti tamper torx screws. Attached to the door and aluminium numberplate by 316 grade stainless steel through fixings.

Supplied with 1no user key per lock, 2no master keys, 2no cylinder removal key and 2no coin box master keys per installation.

Coin Box Options:

  • Integral capacity 8 coins
  • Additional, capacity 50 coins
  • Additional, capacity 100 coins

Prospec Removable Cylinder Dual Coin Collect Lock
  • Medium To High Level
  • High Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Coins

Prospec Removable Cylinder Dual Coin Collect Lock

Prospec Removable Cylinder Dual Coin Collect Lock with coin retain function, either coin retained, coin box with separate master key, removable nickel plated brass cylinder, drilled security key, master series with 2,000 differs. Fixed to backplate with 4no anti tamper torx screws.

Supplied with 1no user key per lock, 2no master keys, 2no cylinder removal key and 2no coin box master keys per installation.

Coin Box Options:

  • Integral capacity 8 coins
  • Additional, capacity 50 coins
  • Additional, capacity 100 coins

Prospec / Kaba Removable Cylinder Coin Lock with Coin Refund
  • High Level
  • High Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Coins

Prospec / Kaba Removable Cylinder
Coin Lock with Coin Refund

Prospec / Kaba Removable Cylinder Coin Lock in Refund, removable KABA cylinder, drilled security key, unique master series with 100,000 differs, fixed to backplate with 4no anti tamper torx screws. Attached to the door and aluminium numberplate by 316 grade stainless steel through fixings.

Supplied with 1no user key per lock and 2no cylinder removal key per order.


Prospec / Kaba Removable Cylinder Coin Collect Lock with Coin Retain
  • High Level
  • High Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Coins

Prospec / Kaba Removable Cylinder Coin Collect Lock with Coin Retain

Prospec / Kaba Removable Cylinder Coin Collect Lock with Coin Retain function, removable KABA cylinder, drilled security key, unique master series with 100,000 differs, fixed to backplate with 4no anti tamper torx screws. Coin box with separate master key. Attached to the door on aluminium numberplate by 316 grade stainless steel through fixings.

Supplied with 1no user key per lock, 2no master keys, 2no cylinder removal key and 2no coin box master keys per installation.

Coin Box Options:

  • Integral capacity 8 coins
  • Additional, capacity 50 coins
  • Additional, capacity 100 coins

Aluminium Hasp & Clasp
  • High Level
  • Medium Expenditure
  • Health Fitness & Private Use
  • Educational Use
  • Padlock

Aluminium Hasp & Clasp

Aluminium Hasp and Clasp from machined aluminium engaged into grooves in the doorframe profile, clasp is formed by machined hole in the door and aluminium numberplate attached to the door by 316 grade stainless steel through fixing into satin anodised aluminium doorknob.

Padlock can be supplied by Client or Prospec.


Hasp Camlock
  • High Level
  • Medium Expenditure
  • Health Fitness & Private Use
  • Educational Use
  • High Risk High Use Wet Area
  • Padlock

Hasp/Camlock

Body chrome plated steel. Anti-rotation device, aluminium numberplate attached to the door by 316 grade stainless steel through fixing into satin anodised aluminium doorknob.

Padlock can be supplied by Client or Prospec.


Dry Area Camlock
  • Medium Level
  • Medium Expenditure
  • Health Fitness & Private Use
  • Educational Use
  • Key

Dry Area Camlock

Standard Camlock, nickel plated with 10 wafer cylinder, reversible toothed key, master key series with 4000 differs. Attached to the door on aluminium back plate using through fixings.

Supplied with 1No user key per lock and 2No master keys per installation.


Wet Area Camlock
  • Medium Level
  • Medium Expenditure
  • Health Fitness & Private Use
  • Educational Use
  • Wet Area
  • Key

Wet Area Camlock

Standard Camlock from solid brass, nickel-plated cam lock with 6-pin cylinder, drilled security key, master key series with 1600 differs. Attached to the door on aluminium number / backplate by 316 grade stainless steel through fixings.

Supplied with 1no user key per lock and 2no master keys per installation.


Prospec Mechanical Code Lock
  • Medium Level
  • Average Expenditure
  • Health Fitness & Private Use
  • Educational Use
  • Combination

Prospec Mechanical Code Lock

Combination lock for lockers equipped with 4 dials that allows the choice of a 4-digit numerical code by the user. Fixed combinations or reset use. Attached to the door on a backplate using through fixings.


Prospec OTS Systems
  • Medium To High Level
  • High Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Electronic

Prospec OTS

Transponder operated stand-alone lock, powered by 4 AA batteries with 30,000 cycle's battery life.

  • Resistance to Humidity IP55
  • Compatible with Technogym wellness system, other wellness cashless purchasing & access control systems
  • 2 level master key system
  • Operates on Mifare 1k & 4K technology
  • Lock, strap & card programmer

Accessories

  • Infoterminal - Showing locker number or individual straps and cards
  • Strap Return Unit

Prospec OTS Advanced
  • Average Level
  • Premium Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Electronic

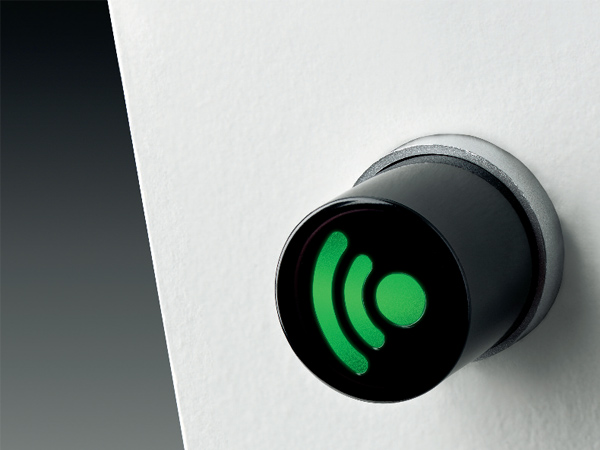

Prospec OTS Advanced

Transponder operated stand-alone locks, powered by 4 AA batteries with 30,000 cycle's battery life.

  • Resistance to Humidity IP55
  • Compatible with Technogym wellness system, other wellness cashless purchasing & access control systems
  • 2 level master key system
  • Operates on all Mifare technology
  • Real time functionality
  • Option of dedicated user use
  • Auto opening function
  • Events log
  • LED indicated lock status
  • PC Software

Accessories

  • Infoterminal - Showing locker number or individual straps and cards
  • Strap Return Unit
  • NFC Programmer

Prospec OCS
  • Average Level
  • High Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Electronic
  • Combination

Prospec OCS

Battery operated standalone electronic digital lock with 4-digit user selected code input, master key, management key and disabled user key option.

LED indicators for lock/unlock and low battery warning, 4 AA size batteries, 10,000 cycles, deadbolt locking for security, fixed through the door with steel screws.

  • Can be assigned for private clubs or shared use for public buildings
  • Keypad

Options:

  • Separate numberplate
  • Engraved numerals on laminate doors

Prospec Keystraps

Prospec Keystraps

Moulded from flexible PVC, 316 grade stainless steel buckles, with black numerals, for all cam and coin locks.

Colour: Blue / Green / Red / Yellow / Orange / Grey / White.

Numbering sequence to order.


Numbered Discs / Safety Pin

Numbered Discs / Safety Pin

25mm Diameter White Trafolyte disc with black engraved numerals.

Numbering sequence to order.

Lock Descriptions

Risk Levels

  1. Low Level. Low resistance to attempted break-in with basic equipment. Not suitable for public facilities. Any lock system fixed direct to the back of locker doors is in this category. The resistance being reliant on the pull out strength of the screws
  2. Medium Level. Has some resistance to attacks from casual thieves. Only suitable for installations with constant staff supervision
  3. Medium to High Level. Resistant to attacks from experienced thieves. Suitable for use in both private and public facilities with reasonable levels of supervision
  4. High Level. Specification including addition of continuous angle guards and anti-tamper fixing screws. Resistant to determined attacks from experienced thieves with specialist equipment. Suitable for installations with limited staff supervision and or lockers in remote locations. Highly recommended when the facility has a previous history of theft.

Prospec can provide the highest level of security available in the industry. It should be noted that the items supplied are storage lockers, not safes and as such there can be no absolute guarantee of resistance to determined thieves who are becoming increasingly ingenious which is symptomatic of today's society.
